Chapter 4

Control unit

A processor is composed of datapath and control unit. Datapath of a processor is the execution unit such as ALU, shifter, registers and their interconnects.  Control unit is considered to be the most complex part of a processor. Its function is to control various units in the datapath.  Control unit realises the behaviour of a processor as specified by its micro-operations.  The performance of control unit is crucial as it determines the clock cycle of the processor.

Control unit can be implemented by hardwired or by microprogram. A computer designer strives to optimise three aspects of control unit design:

1. the complexity (hence cost) of the control unit

2. the speed of control unit

3. the engineering cost of the design (time, correctness etc.)

Hardwired control unit

In the past, hardwired control unit is very difficult to design hence its engineering cost is very high. Presently, the emphasis of computer design is the performance therefore hardwired design is the choice.  Also the CAD tools for logic design have improved to the point that a complex design can be mostly automated. Therefore almost all processors of today use hardwired control unit.

Starting with a behavioural description of the control unit, the state diagram of micro-operations is constructed.  Most states are simply driven by clock and only transition to the next state.  Some states branch to different states depend on conditions such as testing conditional codes or decoding the instruction.

a) event : go to next state
b) event : go to state 1 or state 2 depends on conditionals

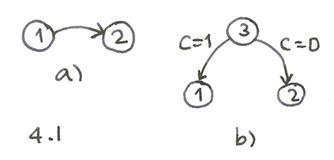

Figure 4.1 several types of states in a state diagram

From the state diagram, a hardware realization can be constructed almost automatically by some CAD tools. The in-depth topic of logic design for sequential circuits and logic minimization can be consulted from many basic textbooks on the subject such as Katz [KAT93].  The control circuit is implemented using Programmable Logic Array (PLA).  In general, any sequential circuit (which can implement any state machine) can be constructed from combinational circuits with feedback.  The feedback information is the states.  If the feedback path uses no clock, the circuit is called asynchronous.  If the feedback path uses a latch with clock, the circuit is called synchronous. Synchronous circuits are used almost exclusively for sequential circuits today as they are easier to design and can be implemented reliably.  Most of the CAD tools handle synchronous circuits.

Asynchronous circuit has been used for the reason of speed as in many early computer designs, for example, ILLIAC and many computers in the class called supercomputer.  But it is difficult to implement reliably and it is still much more difficult to do systematic design of a complex machine using asynchronous circuits. The combinational part of the control circuit can be regarded as a memory where its content is the map of the inputs to the outputs (states are considered to be a part of the outputs). This view of combination circuit as a memory is called Random Access Memory model (RAM) of computation machines.

The bound of complexity of control is  States ´ Control inputs ´ Control outputs

Microprogrammed control unit

Maurice Wilkes invented "microprogram" in 1953 [WIL85].  He realised an idea that made a control unit easier to design and is more flexible. His idea is that a control unit can be implemented as a memory which contains patterns of the control bits and part of the flow control for sequencing those patterns.  Microprogram control unit is actually like a miniature computer which can be "programmed" to sequence the patterns of control bits.  Its "program" is called "microprogram" to distinguish it from an ordinary computer program. Using microprogram, a control unit can be implemented for a complex instruction set which is impossible to do by hardwired.

Microprogram approach for control unit has several advantages:

1. One computer model can be microprogrammed to "emulate" other model.

2. One instruction set can be used throughout different models of hardware.

3. One hardware can realised many instruction sets. Therefore it is possible to choose the set that is most suitable for an application.

To realise this idea it required a high speed memory which was not possible at that time.  The reason for speed is that as the control unit determines how fast a sequence of operations can be executed, the bottle neck becomes the speed of accessing the microprogram which is stored in a special memory. At IBM, a chief architect of IBM 360 family, Gene Amdahl, has recognised the importance of microprogram and committed to implement it for IBM 360. The in-house development for the high speed memory was pursued.  IBM had a great success for her 360 family.

How microprogram work

Like the RAM model, a microprogrammed control unit consists of microPC, micromemory, output buffer and a sequencing unit (Fig 4.2). A micromemory (sometimes called microstore) contains bit patterns that are used to control the datapath.  Each word of the micromemory is called "microword". Each word of the micromemory is separated into several fields used for internal control, external control, conditional and specifies the next address.  Internal control bits are the signals that control the datapath.  External control bits are the signals that control external units such as memory (read, write), interrupt acknowledge etc. Conditionals are the bits that are used to determine the flow of microprogram; loop, branching, next instruction etc. Its input comes from the datapath (usually from the conditional code register).  Next address determines the next microword to be executed.

Figure 4.2 a microprogrammed control unit

A microprogram is executed as follow :

1. a word from microprogram at the location specified by the microPC is read out, control bits are latched at the output buffer which is connected to the datapath.

2. if conditional field is specified and the test for conditional is true, the next address of microprogram will come from the next address field otherwise the microPC will be incremented (execute the next microword).

What that has been described is called horizontal microprogram in which there is a one-to-one relationship between internal/external control bits and the actual control signal of the datapath (hence it is wide or "horizontal"). The microword can have other formats.  There are several possibilities :

1. single format - one address, as just described above.

2. single format - two addresses, each microword contains two next addresses field, one for result of test true, the other for result of test false.

3. multiple format, such as, one format for the control bits without the next address field and another format for "jump on condition" with the address field.  The advantage is that the microword can be shorter than the single format.  The disadvantage is that to "jump" will take one extra clock.

Horizontal microprogram allows each control bit to be independent from other therefore enables maximum simultaneous events and also offers great flexibility. It is also waste a lot bit.

For each field of microword, there may be a group of bits that are not activated at the same time therefore they can be "encoded" to use a fewer bit.  A decoder is required to  "decode" these bits and to connect them to the datapath.  This approach is called vertical microprogram. There are many possibilities to compact the micromemory to be as small as possible, sometime trading off speed for space, for example, two-level microprogram.  The first level is "vertical" i.e. maximally encoded, the microword of the level one is pointed to the "horizontal word" of the second level.  This is rather like the first level is composed entirely from "subroutine call" and the second level is the subroutine.

control bits

next address

a) one-address format

control bits

true next

false next

b) two-address format

0	control bits

1	next address

c) multiple format

Figure 4.3 several formats of microword

Microprogram becomes obsolete mainly because the present design emphasizes the performance and microprogram is slower than hardwired.  The change in instruction set design toward a minimum number of clock per instruction simplifies the instruction set to the point that microprogram is not really required.  Also the design of hardwired control unit can be mostly automated as opposed to microprogram which must be written and debug.  Hence, for the current instruction set architecture, hardwired control unit offers a lower engineering cost.

Realisation of microprogrammed systems

This section discusses the equivalence of hardware and software in realising a sequential system. This concept will be illustrated by a simple example of designing a 4-bit comparator in both hardwired and microprogrammed systems (this example is due to [MAN92]).

An assembly of logic elements, whether combinational (AND, OR, NOT, NAND gates, demultiplexors, multiplexor etc) or sequential (flip-flops, registers etc.) is called a "hardwired logic". By incorporating memories and the content of memory is the test or assignment elements, the system is called a "microprogrammed logic system", the content is the "microprogram". A microprogrammed system can be used to realise a synchronous sequential system, that is it can be used to implement a control unit.

Example a 4-bit comparator input : A0 A1 B0 B1 Z is { EQ, LT, GT }. One can write the logic expression of Z as

Z = (A1' B1' A0 B0' + A1 B1' + A1 B1 A0 B0' ) . GT + (A1' B1' A0' B0' + A1 'B1' A0 B0 + A1 B1 A0' B0' + A1 B1 A0 B0 ) . EQ + (A1' B1' A0' B0' + A1' B1 + A1 B1 A0' B0 ) . LT

where A' is NOT A

The expression can be tabulated in the table below :

number	A1	B1	A0	B0	Z
0	0	0	0	0	EQ
1	0	0	0	1	LT
2	0	0	1	0	GT
3	0	0	1	1	EQ
4..7	0	1	X	X	LT
8..11	1	0	X	X	GT
12	1	1	0	0	EQ
13	1	1	0	1	LT
14	1	1	1	0	GT
15	1	1	1	1	EQ

This expression can be represented as a diagram of test and assignment primitives that is traversed sequentially by using synchronous sequential system which each clock reads an element of the diagram and executes the primitive.

Z = compare(A,B)

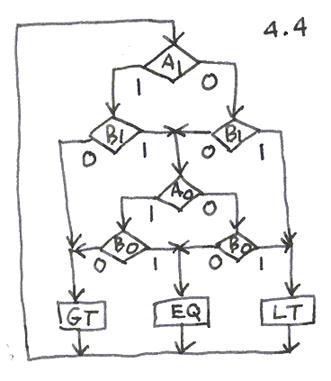

Figure 4.4 diagram of compare

Each primitive can be described as follows:

Figure 4.5 test element

test

if V is true then goto ads1 else goto ads0

Figure 4.6 assignment element

assignment

output OUT and goto next

The above diagram can be translated into "microprogram" as follows :

0 if A1 then 1 else 2

1 if B1 then 3 else 6

2 if B1 then 8 else 3

4 if A0 then 4 else 5

5 if B0 then 7 else 6

6 R = GT goto 0

7 R = EQ goto 0

8 R = LT goto 0

Next, the microprogram encoded to map the primitives to a concrete representation. The 4 cases of test inputs {A1 B1 A0 B0} are encoded into 2 bits. The output { EQ LT GT} is encoded into 3 bits using unary code.

input	i1	i0
A1	0	0
B1	0	1
A0	1	0
B0	1	1

output	z2	z1	z0
GT	1	0	0
EQ	0	1	0
LT	0	0	1

The microword has two types: test, assignment. The address field has 4 bits to cover the whole microprogram address (0 . . 8)

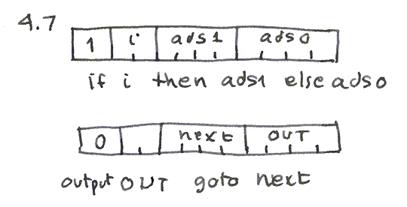

Figure 4.7 microword format for compare

The microprogram then can be written as follows :

ads	T	i1 i0	ads1, next	ads0, z
0000	1	0 0	0001	0010
0001	1	0 1	0011	0110
0010	1	0 1	1000	0011
0011	1	1 0	0100	0101
0100	1	1 1	0111	0110
0101	1	1 1	1000	0111
0110	0	- -	0000	-100
0111	0	- -	0000	-010
1000	0	- -	0000	-001

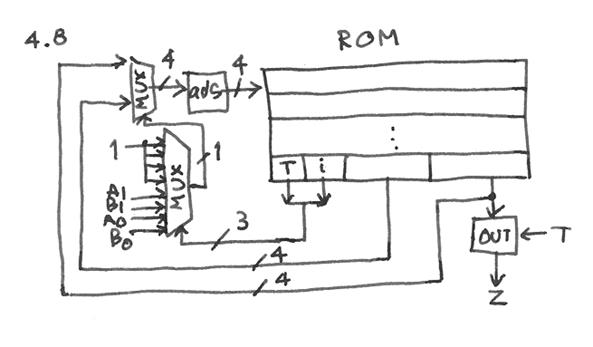

Figure 4.8 microprogrammed unit to realise the function compare

The microprogrammed unit to realise the function compare is shown in Fig. 4.8. How many clocks it takes to evaluate compare (A, B)? Observing the diagram (Fig. 4.4), on the longest path, there are 5 "steps" to traverse the diagram hence it takes 5 clocks to evaluate this function using the microprogrammed unit above.

Equivalence of hardware and software

The definition of microprogramming is due to Wilkes, who in 1953 suggested a method for designing the control unit of a processor, based on the use of sequence of microwords - a microprogram - held in a read only memory (ROM). In this context, microprogramming is generally understood as the technique of producing interpreters for high-level language.

At that time random access memory (RAM) that was available was much slower than the processor, leads to CISC (Complex Instruction Set Computer) to achieve high speed the microprogram of CISC are organised horizontally; the need to control a complex processing unit requires each microword to consist of a large number of bits, often over 100.

Firmware, specification of a microprogram, is not an interpretation algorithm but a logic system. The concept of vertically organised microprogram follows that each microword is of fewer bits than in horizontally organised microprogram. The resulting simplicity enables a true optimization of the software to be achieved. Firmware is the transformation and equivalence between hardware (logic systems) and software (microprogram). This hardware-software equivalence is a particular case of the equivalence between space and time

Conclusion

As the history tells us, the microprocessor followed the same trend as earlier computer designs.  Because of the limit of resource (the number of transistor in a chip), hardwired control was implemented and the instruction set architecture was toward a simple design.  The advantage of simpler design for control unit and ease of change popularised microprogramming.  Microprogram made it possible to achieve more complex instruction sets.  With a much larger micro memory a machine as elaborate as the VAX [LEV89] is possible.  In 1984, DEC wanted to offer a cheaper machine with the same instruction set as VAX.  They reduced the instructions interpreted by microprogram by trapping some instructions and performing them in software.  They discovered that 20% of VAX instructions occupied 60% of the microprogram, and yet they are used (executed) only 0.2% of the time.  The simpler subset of VAX ISA, called MicroVAX-1, implemented 80% of VAX instruction in microprogram, other 20% is trapped to software, has the size of micro-memory reduced from 480K (VAX) to 64K (MicroVAX-1), and perform 90% of the performance of VAX-11/780.  This is also an evidence toward a new thinking in instruction set design. The current design sees the revive of the idea of translating between the real executable code into the internal code which is suitable for controlling the functional units [GEP00] [KLA00]. The idea of "code translation" is used to retain the ISA compatibility for the existing software to be run on the new hardware.
