# Natural Graphics Processing Unit  (NPU)

See NPU in action  (online demonstration)

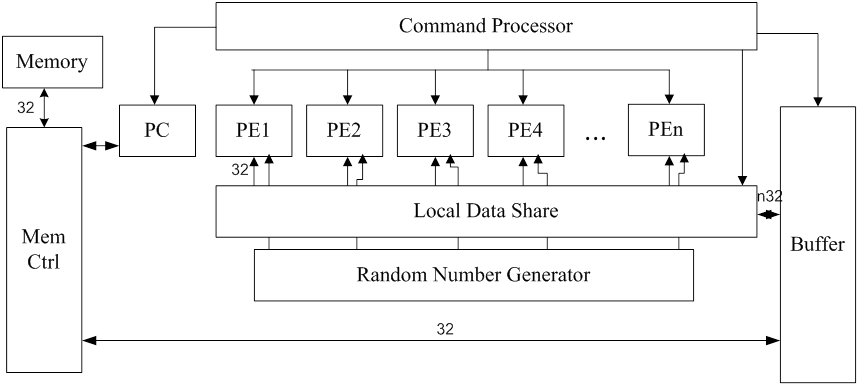

This is a simple GPU with four 32-bit cores .  It contains 4 Processing Elements (PE or core). Each PE has 32 registers,  one ALU and Local data store  (LDS).  It also includes a random number generator  32 bits 4x8.  It has 16Kx32 bits of memory. The memory is interface with processor with BUF (buffer unit) connected to LDS.  LDS communicates to all PEs in parallel.  NPU operates in Single Instruction Multiple Data (SIMD) mode.  That is, every PE runs the same program in synchrony.  So, NPU has only one control unit.  It has one program counter (PC) and one Instruction Register (IR).  Its instruction has fixed size of 32 bits. ## Instruction format

op:8 a1:14 a2:5 a3:5

a1 is ads  or #n 14 bits
a1 is ls, r3
a2 is r1
a3 is r2

ls 0,1,2,3
r 0..31

Data
ld ls @ads      LDS[ls] = M[ads]     ls = 0,1,2,3
st ls @ads      M[ads] = LDS[ls]
ldr r           R[r] = LDS         r = 0..31
str r           LDS = R[r]
ldx ls r1 r2    LDS[ls] = M[R[r1]+R[r2]]   load indirect (index)
stx ls r1 r2    M[R[r1]+R[r2]] = LDS[ls]   store index
ldw @ads        LDS = M[ads]         load wide
bc r ls         R[r] = LDS[ls]       broadcast

ALU operations
add r3 r1 r2    R[r3] = R[r1] + R[r2]
sub r3 r1 r2    R[r3] = R[r1] - R[r2]
mul r3 r1 r2    R[r3] = R[r1] * R[r2]
ashr r3 r1 #n   R[r3] = R[r1] >> n
addi r3 r1 #n   R[r3] = R[r1] + n
and r3 r1 r2    R[r3] = R[r1] & R[r2]
or  r3 r1 r2    R[r3] = R[r1] | R[r2]
xor r3 r1 r2    R[r3] = R[r1] ^ R[r2]
lt r3 r1 r2     R[r3] = R[r1] <  R[r2]
le r3 r1 r2     R[r3] = R[r1] <= R[r2]
eq r3 r1 r2     R[r3] = R[r1] == R[r2]

Control
jmp @ads        pc = ads
jz r @ads       if R[r] == 0, pc = ads
jnz r @ads      if R[r] != 0, pc = ads

Special
rnd r           R[r] = random
mvt r3 r1 r2    if R[r3] != 0, R[r1] = R[r2]  move if true

pseudo
sys 4           stop simulation

equivalent
inc r           addi r r #1
dec r           addi r r #-1
clr r           xor r r r
mov r3 r1       addi r3 r1 #0

LDS can be named "bus interface" (to join a narrow 32-bit bus, with a wide 32x4 -bit bus to cores) or "broadcast unit" because it can do broadcast one LDS to all cores.

bc r ls          LDS[ls] -> all R[r]   broadcast
ldw @ads         M[ads] -> all LDS     load wide

## Assembly language

The source file composed of two sections: code and data. The structure of a source file is as follow:
`<code>`
`.end`
`<data>`
`.end`

### Code section

A line of instruction consists of opcode and its arguments, or a label. A label begins with ':'. An argument is a number or an address (prefix '@').  An address can refer to a label.
`op arg*`
`:label`
arg is
`num, @num, @label`

A comment starts with ';' and lasts until the end of line.  A comment will be ignored by the assembler.
`; comment until end of line`

### Data section

The data section consists of set-address and data (number). The set-address command begins with '@' follow by the address.
`@ads    `
`num*  `

## Sample program

Mutiply two vectors,  each vector has 4 components. We strip components across cores.
A = B * C
Let A is at @100..103, B at @104..107, C at @108..111, use R for A, R for B, R for C.
ld 0 @104
ld 1 @105
ld 2 @106
ld 3 @107    ; load B from Mem to LDS
ldr 0        ; move LDS to R
ld 0 @108
ld 1 @109
ld 2 @110
ld 3 @111    ; load C from Mem to LDS
ldr 1        ; move LDS to R
mul 2 0 1    ; R = R * R  all cores
str 2        ; move R to LDS
st 0 @100
st 1 @101
st 2 @102
st 3 @103    ; store LDS to Mem
sys 4        ; stop simulation
.end
; data       ; initialise Mem
@100
0 0 0 0      ; A
1 2 3 4      ; B
2 3 4 5      ; C
.end
NPU instruction can perform loop iteration using jump, jump-if-zero, jump-if-not-zero (jmp, jz, jnz).  Because NPU is SIMD the condition zero/not-zero must be true for all PEs (they work in lock-step). For example, if we want to loop n times: use R

clr 2
addi 2 2 #n
:loop
; perform some action
dec 2
jnz 2 @loop

### Accessing an array

ldx and stx  are instructions for accessing an array.  They use LDS to indirectly address memory.  The access to memory must be "serialised", that is, each core takes turn to access memory.

ldx ls r1 r2             LDS[ls] = M[ R[r1]+R[r2] ]

R[r1] + R[r2] of core ls is used as an address to read memory into LDS[ls].

stx ls r1 r2             M[ R[r1] + R[r2] ] = LDS[ls]

Similarly, stx uses R[r1]+R[r2] of core ls to address memory and store LDS[ls] to that address.

Example program to sum elements in an array.  The array is terminated with 0.
i = 0
s = 0
while ax[i] != 0
s = s + ax[i]
i++
We show a program that uses all cores to do the same task. (Quite a waste, but the program is easy to understand)
; r1 s, r2 i, r3 ax[i], r5 &ax

clr 2        ; i = 0
clr 1        ; s = 0
clr 5
addi 5 5 #100 ; base &ax
:loop
ldx 0 5 2    ; get ax[i] to all cores
ldx 1 5 2
ldx 2 5 2
ldx 3 5 2
ldr 3        ; to r3
jz 3 @exit    ; ax[i] == 0 ?
add 1 1 3    ; s += ax[i]
inc 2        ; i++
jmp @loop
:exit
sys 4
.end

@100        ; ax[.]
1 2 3 4 5 0
.end

## How to use Assembler and Simulator

The assembler for NPU is  "npasm".
c:> npasm < mul.txt > mul.obj

generate "mul.obj", an object code file.  To run this object:
c:> npu < mul.obj

The screen will shows internal registers after executing each instruction, like this:
0: ld 104 0 0
R 0 0 0 0
R 0 0 0 0
R 0 0 0 0
R 0 0 0 0
LDS  1 0 0 0
1: ld 105 1 0
R 0 0 0 0
R 0 0 0 0
R 0 0 0 0
R 0 0 0 0
LDS  1 2 0 0
. . .
4: ldr 0 0 0
R 1 2 3 4
R 0 0 0 0
R 0 0 0 0
R 0 0 0 0
LDS  1 2 3 4
...
10: mul 2 0 1
R 1 2 3 4
R 2 3 4 5
R 2 6 12 20
R 0 0 0 0
LDS  2 3 4 5
. . .
17: sys 4 0 0
R 1 2 3 4
R 2 3 4 5
R 2 6 12 20
R 0 0 0 0
LDS  2 6 12 20
execute 18 instructions 149 cycles

The simulator has defined 2000 words of memory.  The limit of a run is 1000 instructions. (You can change by recompile the simulator).

## Tools

The package includes : assembler, simulator, sample programs    npsim4.zip

## References

Thammasan, N. and Chongstitvatana, P., "Design of a GPU-styled Softcore on Field Programmable Gate Array," Int. Joint Conf. on Computer Science and Software Engineering (JCSSE), 30 May - 1 June 2012, pp.142-146. ( pdf )
Chongstitvatana, P., "Putting General Purpose into a GPU-style Softcore,"  Int. Conf. on Embedded Systems and Intelligent Technology, Jan 13-15, 2013, Thailand. (preprint )
