2110793 Advanced Topic in Digital Systems 2018

Prabhas Chongstitvatana
Office: Engineering Building 4, floor 18, room 13
phone: 02-2186982
email: prabhas at chula dot ac dot th

Class meeting: Thurs  9:30-11:00, Eng 100/403,  Fri  9:30-11:00, Eng 4, 20-2.

This semester we will discuss Evolutionary Computation. This class discusses evolutionary computation in all aspects.  Many established topics in this field will be studied: Genetic algorithms, Genetic programming, Evolution strategies.  Advanced topics such as Estimation of distribution algorithms and multiple objective optimisation are included. Theory as well as practical aspects are emphasized.

How the class is conducted?

Because the nature of the topics is the study of algorithms, it renders itself suitable for experimentation.  Weekly assignment requires students to run the experiment based on the algorithm in the lecture.  It is a graduate class, so students are expected to do a lot of self-study.  Individual studies are designed to let students study a specific topic in depth.  The results are presented in the group discussion as well as submission of written reports.
Previous lectures on EC  2012  2010
Previous lectures on ADV  2017


Final exam is on 7 May 2018, 13:00, at room floor 20, Eng building 3.

Weekly lecture

1  Genetic algorithms  (Whitley tutorial on GA)    Intro to GA
2  Theoretical basis   GA implementation    Probabilistic algorithms
4  Genetic programming  read from http://www.genetic-programming.org/    GP in design

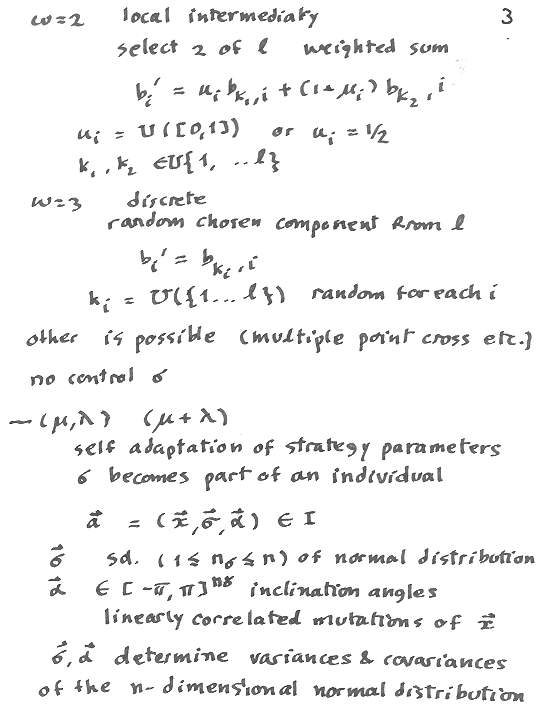

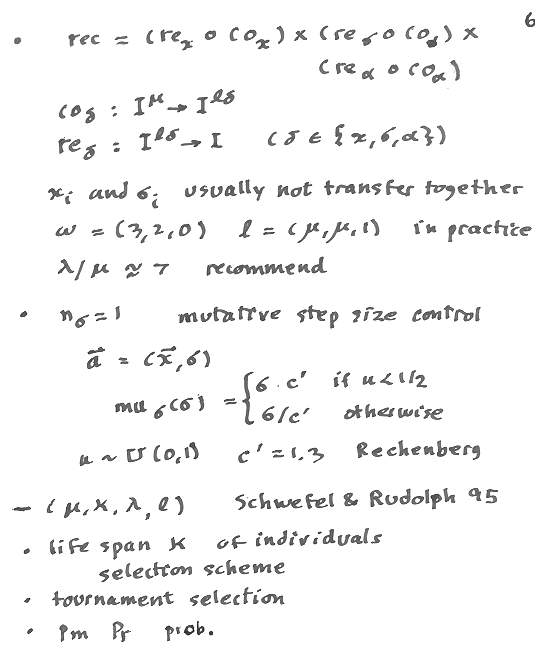

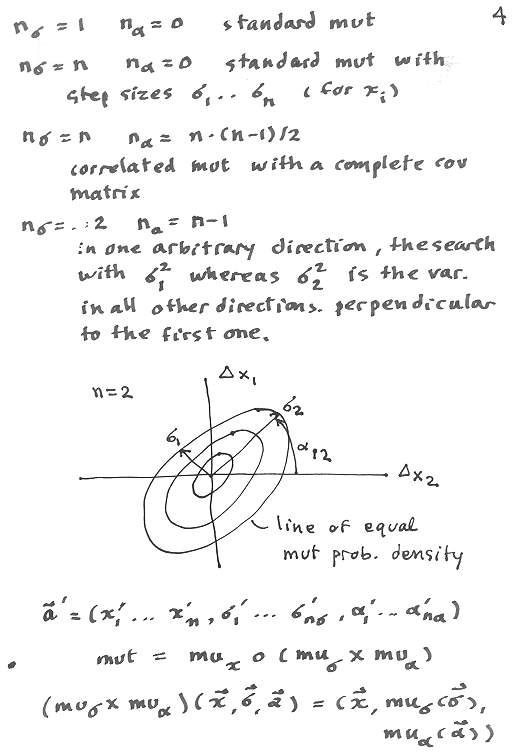

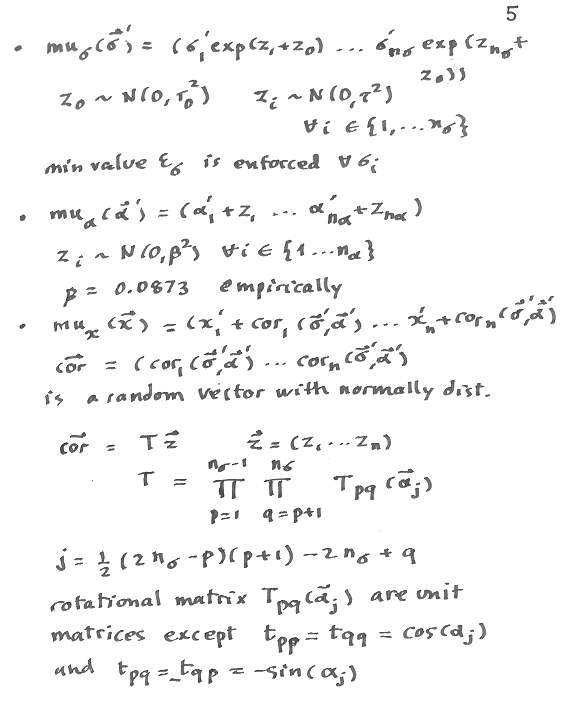

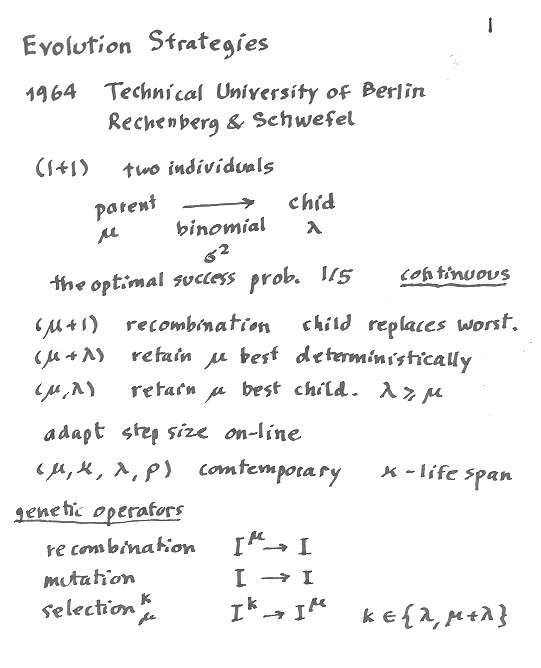

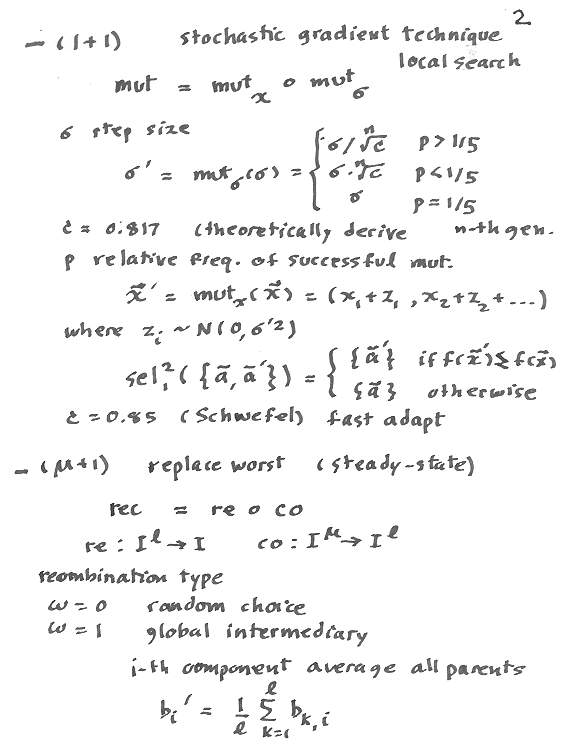

5  Evolution strategies  slides:  one  two  three  four  five  six
6  Estimation of distribution algorithms  (Pelikan slides)
7  EDA 2  Baluja, Population-based incremental learning, CMU CS-94-163, 1994
8  Multiple objective optimisation  Deb, NSGA II  ieee-trans-ec 2002    slides Multiobjective , Differential Evolution
9-11 Discussion of the recent topic in EC
   Differential Evolution  wiki   (paper local copy)
   Particle Swarm Optimization (PSO)  wiki
   Ant colony optimization  wiki
   No Free Lunch theorem  wiki  (paper local copy )
   Coevolution  ( in nature wiki )   cooperative coevolutionary algorithms  ( local copy pdf )
12 Summary

Supplementary materials

1)  Georges R. Harik, Fernando G. Lobo, and David E. Goldberg, "The Compact Genetic Algorithm," IEEE TRANSACTIONS ON EVOLUTIONARY COMPUTATION, VOL. 3, NO. 4, NOVEMBER 1999.  (full text)
2)  COIN homepage
3)  Wattanapornprom, W., Olanviwitchai, P., Chutima, P. and Chongstitvatana, P., "Multi-objective Combinatorial Optimisation with Coincidence Algorithm," IEEE Congress on Evolutionary Computation, Norway, May 18-21, 2009.  ( full text )

4)  An easier read on COIN description :  Chongstitvatana, P., Wattanapornprom, W., Olanviwitchai,  P., Sirovetnukul, R., Kampirom N., and  Chutima, P., "Coincidence Algorithm for Combinatorial Optimisation and Its Applications," (invited paper),  Proc. of Electrical Engineering Conference (33th), Chiangmai, Thailand, 1-3 Dec. 2010.  ( full text ) 5)  A tutorial on multiobjective evolutionary optimization, Zitzler (pdf)
6)  Storn, R.; Price, K. (1997). "Differential evolution - a simple and efficient heuristic for global optimization over continuous spaces". Journal of Global Optimization 11: 341–359. (local copy)
7)  Wolpert, D.H., Macready, W.G. (1997), "No Free Lunch Theorems for Optimization," IEEE Transactions on Evolutionary Computation 1, 67. ( local copy )
8)  R. Paul Wiegand, An Analysis of Cooperative Coevolutionary Algorithms, PhD thesis, Department of Computer Science, George Mason University, 2003.  ( local copy pdf )
9)  Omidvar, M.N., Xiaodong Li, Zhenyu Yang,  Xin Yao, "Cooperative Co-evolution for large scale optimization through more frequent random grouping," IEEE Congress onEvolutionary Computation (CEC), 18-23 July 2010,  pp.1-8. ( local copy ) 10)  Zhenyu Yang, Ke Tang, Xin Yao, "Large scale evolutionary optimization using cooperative coevolution," Information Sciences 178 (2008) 2985–2999. (local copy)
11)  Das, S., "Differential Evolution: A Survey of the State-of-the-Art," IEEE Trans on Evolutionary Computation, vol 15, issue 1, Feb. 2011, pp.4-31.  (local copy)
12)  Manuel Lopez-Ibanez, T. Devi Prasad, Ben Paechter, "Representations and Evolutionary Operators for the Scheduling of Pump Operations in Water Distribution Networks," Evolutionary Computation 19(3): 429–467. (local copy)
13) Flowshop problems:  Quan-Ke Pan, Ruben Ruiz, "Local search methods for the flowshop scheduling problem with flowtime minimization," European Journal of Operational Research, 222 (2012) 31-43.  ( local copy )

14) K. Suksen and P. Chongstitvatana, "Exploiting Building Blocks in Hard Problems with Modified Compact Genetic Algorithm," (draft) 2018

15) Yann Dujardin, Iadine Chadès, "Solving multi-objective optimization problems in conservation with the reference point method," PLoS ONE 13(1): e0190748. https://doi.org/10.1371/journal.pone.0190748  (local copy)


1 Try your hands on solving TSP with GA.  Go to this site.  It is Java (applet) based. http://www.ads.tuwien.ac.at/raidl/tspga/TSPGA.html
2 What kind of operators are suitable for TSP ?
. . .


Think of an interesting multi-objective Combinatorial Optimization problem.  Use COIN to solve it. The first step to solve the problem is how to map the instant of solutions to be suitable for COIN.  Supawadee has written a prototype TSP-COIN (a kind of golden model for COIN  written in C). It is COIN that solves TSP problem.  It is all in one file.  The input "input15.txt" (and input26.txt) is an example.  You can use it to check the correctness your implementation of COIN. You can compile (tspcoin.c) and run it.  The output is like this:

The algorithm found optimal solution, terminate in gen 15!!!
The best result is 291
traverse : 13 1 11 4 6 8 10 14 12 3 7 5 9 15 2

  You must deliver the following:
1)  a running program that solve your problem
2)  present your project (8 minutes max)
3)  a short report describing your project and method.

Here is the TSP-COIN  (tsp-coin.zip)

External references

Applet (animation) for GA

Genetic Algorithm Viewer 1.0 is a demonstration applet of the functioning of a Genetic Algorithm (GA). It aims at showing the power of GA and of the main mechanisms used while permitting a certain form of visualization of the general functioning.
Visualisation of Genetic Algorithms for the Traveling Salesman Problem in Java
The applet executes what is called a genetic algorithm (GA). To facilitate understanding, every step in the GA is animated. This particular GA evolves solutions to a simple board game. This program also detects and reports if any irreducibly complex (IC) solutions arise during the evolution of its population of solutions to the board game.
Minimum of Function: The problem is expressed as looking for extreme of a function. Some function is given and GA tries to find minimum of the function. For other problems we just have to define search space and the fitness function which means to define the function, which we want to find extreme for.

Source code for Differential Evolution (from Storn)  http://www1.icsi.berkeley.edu/~storn/code.html


homework         30
individual study  30  (final project)
final exam          40


1. Mitchell, M., An introduction to genetic algorithms, MIT press, 1996.
2. Goldberg, D., The design of innovation, Kluwer pub, 2002.
3. Holland, J. H., Adaptation in natural and artificial systems, MIT press, 1992.
4. Koza, J., "Genetic Programming Vol 1, 2, 3", MIT Press, 1992, 1994, 1999.
5. Goldberg, D., Genetic algorithms, Addison-Wesley, 1989.
6. Banzhaf, W., Nordin, P., Keller, R. and Francone, F., Genetic Programming: An Introduction, Morgan Kaufmann, 1998.
6. Winter, G., Periaux, J., Galan, M., Cuesta, P. (eds), Genetic algorithms in engineering and computer science, John Wiley, 1995.

Uptodate handouts on various current researches will be distributed in the class.


myga example
I have mentioned Heuristic Lab  as a good tool.  Try it.
TSP-COIN  (tsp-coin.zip)

last update 7 May 2018
